Composing rotations

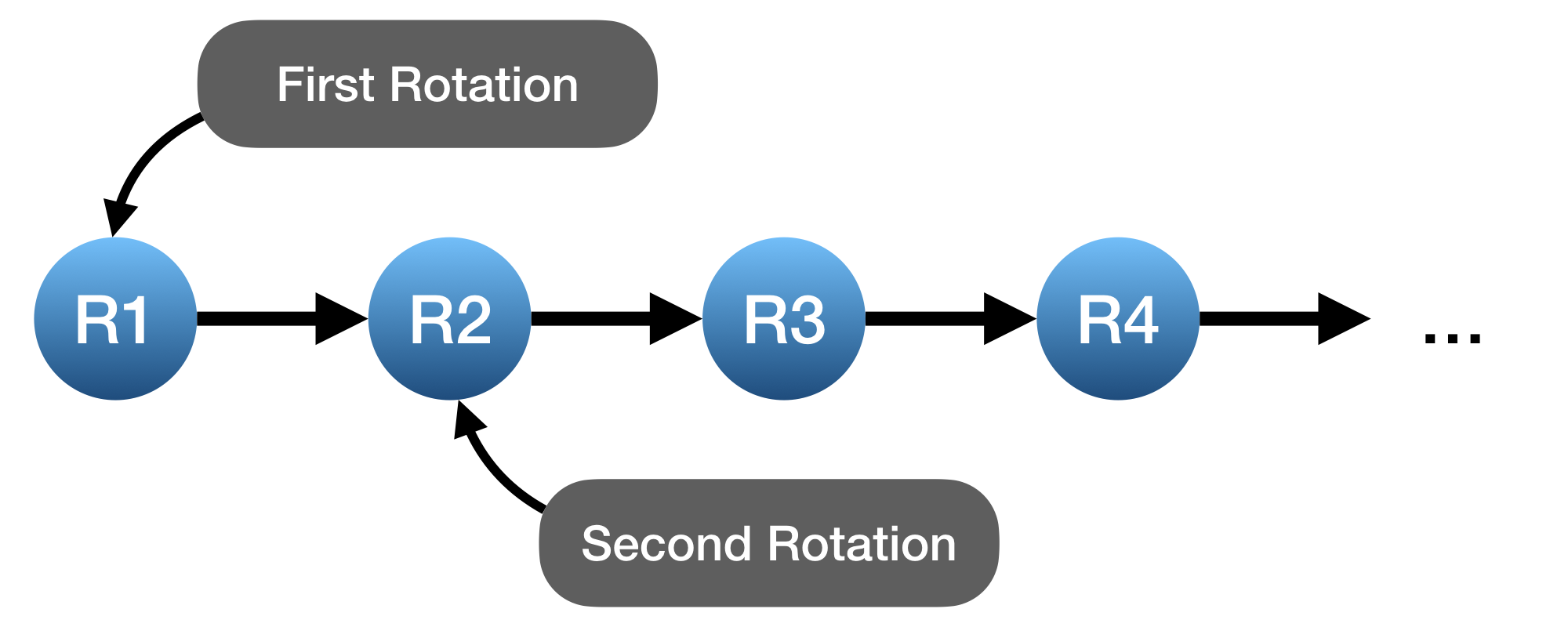

Multiple rotations represented can be composed using the function:
compose_rotation(R1,R2,R3,R4...)
in which R1
, R2
, R3
, ..., must be of the same type. This method returns the following rotation:
Currently, this method supports DCMs, Euler angle and axis, Euler angles, and Quaternions.
julia> D1 = angle_to_dcm(0.5,0.5,0.5,:XYZ)
3×3 StaticArrays.SArray{Tuple{3,3},Float64,2,9}:
0.770151 0.622447 -0.139381
-0.420735 0.659956 0.622447
0.479426 -0.420735 0.770151
julia> D2 = angle_to_dcm(-0.5,-0.5,-0.5,:ZYX)
3×3 StaticArrays.SArray{Tuple{3,3},Float64,2,9}:
0.770151 -0.420735 0.479426
0.622447 0.659956 -0.420735
-0.139381 0.622447 0.770151
julia> compose_rotation(D1,D2)
3×3 StaticArrays.SArray{Tuple{3,3},Float64,2,9}:
1.0 2.77556e-17 0.0
2.77556e-17 1.0 5.55112e-17
0.0 5.55112e-17 1.0
julia> ea1 = EulerAngleAxis(30*pi/180, [0;1;0]);
julia> ea2 = EulerAngleAxis(45*pi/180, [0;1;0]);
julia> compose_rotation(ea1,ea2)
EulerAngleAxis{Float64}:
Euler angle: 1.3090 rad ( 75.0000 deg)
Euler axis: [ 0.0000, 1.0000, 0.0000]
julia> Θ1 = EulerAngles(1,2,3,:ZYX);
julia> Θ2 = EulerAngles(-3,-2,-1,:XYZ);
julia> compose_rotation(Θ1, Θ2)
EulerAngles{Float64}:
R(X): -0.0000 rad ( -0.0000 deg)
R(Y): 0.0000 rad ( 0.0000 deg)
R(Z): -0.0000 rad ( -0.0000 deg)
julia> q1 = angle_to_quat(0.5,0.5,0.5,:XYZ);
julia> q2 = angle_to_quat(-0.5,-0.5,-0.5,:ZYX);
julia> compose_rotation(q1,q2)
Quaternion{Float64}:
+ 0.9999999999999998 + 0.0.i + 0.0.j + 0.0.k
